Cheetah v2.0

1. Product Introduction

Cheetah 2.0 is a single-head main control board based on STM32F401, with 4 TMC2209 onboard, supports sensor-less homing, can be connected to a variety of displays, compatible with the installation size of most of the Creality 3D machines, such as ender3, ender3 V2, ender3 pro, ender5, and is also suitable for general 3D printers DIY.

2. Features

• Compact size: 101.5mm x 72mm，Compatible with the Creatlity ender 3 motherboard size
• Fully integrated all in one solution:
• STM32F401MCU (Run Marlin 2.0**/**Klipper )
• 4X TMC2209 stepper drivers, Support sensor-less homing
• UNIVERSAL POWER:
• ​ Can be used with 12V/24V for motors / heated bed
• ​ 24V to 12V/2A DC-DC for fans
• ​ Integrated high precision power regulators (DC/DC): 5V 2A Max and 3.3V 600mA Max LDO
• ​ 12V&24V power pin out
• Onboard TF card socket- EXP3 for 12864 display panel (Creality 12864 panel or FYSETC Generic12864)
• EXP1&EXP2 RepRapDiscount SmartController compatible pin header on board
• EXP4 with I2C and UART1
• Onboard 5V WS2812 RGB control
• SD card & USB upload support
• Car fuses for main power input
• Up to 3 ways PWM fans (5/12/24 Optional)
• PCB： FR4-TG155 PCB - Gold ENIG finishing

3. Application

• 3D printer
• CNC Device
• Other similar machines
• Voron 0.1(github gitee)

4. Hardware

4.1 Hardware Reasources

4.2 Connectors and jumpers define

Coming soon...

4.3 Pin Definition

4.4 Wiring

4.4.1 Bltouch wiring

klipper config

[bltouch]
sensor_pin: ^PA0
control_pin: PB1

4.4.2 VORON 0.1 wiring

Please refer to our VORON 0.1 kit wiring here( github or 国内)

5. Firmware

5.1 Marlin

Follow the steps below to compile the firmware yourself. More information here.

5.1.1 Download Vscode + platformio

To compile the firmware , you need to install Visual Studio Code and the platformio pulg-in.

5.1.2 Firmware config

You have two code source choices

Source 1

You can get Marlin code is in the firmware/Marlin folder in this repository github or gitee.

Source 2

Also you can get upstream branch from github or gitee (You'd better use the bugfix-2.0.x version as i just make PR 2021/10/10, so Marlin group may not integrate the code in formal version). Remember to change default_envs in platformio.ini file.

default_envs = FYSETC_CHEETAH_V20

And change MOTHERBOARD define according to your cheetah board version in Configuration.h

#define MOTHERBOARD BOARD_FYSETC_CHEETAH_V20

And serial port

#define SERIAL_PORT -1
#define BAUDRATE 115200

Change configuration

You need to modify your configuration.h and configuration_adv.h according to your machine. Then you can compile the firmware.

5.1.3 Compile the firmware

Open Vscode and open platformio main page and click the "Open Project" button , and direct to the folder where you put your firmware.

If everything goes fine , at the bottom you can see several buttons

Just click check mark to compile.

5.1.4 Upload the firmware

Follow the instruction here.

5.2 Klipper

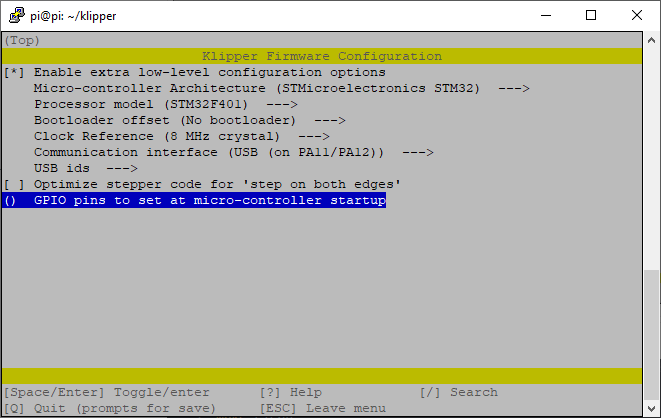

Till now(2021/11/30), Klipper don't have boot offset setting for STM32F401 chip, so we use no Bootloader option first. (If you want still want to use Cheetah bootloader, you can change the code following the PR here, then use 32KiB bootloader option).

make clean
make

Then follow the Firmware Upload section instruction below to upload the firmware.

I made the PR for Klipper of Cheetah v2.0 config, you can check it here.

5.3 Firmware Upload

We provide several ways to upload the firmware.

5.3.1 Upload the firmware(SDCARD)

If you use Klipper firmware with No bootloader option, you can't use this method. This method only works with bootloader.

Uploading firmware using SD card is our default way to update the firmware as Cheetah v2.0 already has the bootloader on it when it leave the factory. But if you once upload the firmware to Cheetah v2.0 flash address 0x08000000, then the bootloader in Cheetah v2.0 will be gone, then you need to upload the bootloader to Cheetah v2.0 yourself, please follow the README in bootloader folder (github or gitee) to upload the bootloader.

How to upload firmware with bootloader

Copy your compiled firmware file firmware.bin(If you use klipper firmware, you need to rename klipper.bin to firmware.bin) file to the SD card , and insert it to the SD card slot which is at the right side of the board, and then power up the board. You may need to wait for about 30s to finish uploading. When finished firmware name will change to old.bin.

5.3.2 Upload the firmware(dfu-util)

This method works in linux, that means should work in raspberry pi.

1. Enter DFU mode first

   • First power off the board
   • Place jumper on BT0 and 3.3V pin
   • Connect USB cable to the board and your computer
   • Power up the board with 24v

2. Make sure dfu-util is installed, shoot dfu-util --version command to check.

   Sample output:

   Copy

   dfu-util 0.9

   Copyright 2005-2009 Weston Schmidt, Harald Welte and OpenMoko Inc.
   Copyright 2010-2016 Tormod Volden and Stefan Schmidt
   This program is Free Software and has ABSOLUTELY NO WARRANTY
   Please report bugs to http://sourceforge.net/p/dfu-util/tickets/

   If not , you should install it first, use the package manager of your distribution to get the latest version, like

   Copy

   sudo apt-get install dfu-util

3. Then use the command below to upload the firmware. You should replace firmware.bin below with your built firmware bin file location like out/klipper.bin. Change flash address 0x08008000 to bootloader you choosed. (If you use Marlin firmware, you need to set it to 0x08008000. If you use klipper firmware and you choose boot address 32kiB bootloader (decribe here) when compiling klipper then set it 0x08008000, if no Bootloader , set it 0x08000000.)

   Copy

   dfu-util -R -a 0 -s 0x08008000:leave -D firmware.bin

4. Remove boot jumper and power-off then power on the board.

5.3.3 Upload the firmware(WINDOWS DFU)

The other way to upload the firmware is using DFU.

Step 1. Download stm32cubeprogrammer

You can download it from ST website.

https://www.st.com/zh/development-tools/stm32cubeprog.html

Open the STM32CubeProgrammer software.

Step 2. Enter DFU mode

1. First power off the board
2. Place jumper on BT0 and 3.3V pin
3. Connect USB cable to the board and your computer
4. Power up the board with 24v

Now the board is in DFU mode.

REMEMBER to remove the jumper if you finish uploading firmware or it will enter DFU mode again.

Step 3. Upload the firmware

Now you can connect and flash the Cheetah board with stm32cubeprogrammer with the following operation.

Do as the red number shows in the screen shot.

1. Click the button to find the DFU port.
2. Connect the DFU
3. Choose the "firmware.bin" file.
4. If your firmware is .hex file, skip this step. Fill in the 'Start address' with (If you use Marlin, set it 0x08008000. If you use Klipper firmware and you choose boot address 32kiB bootloader (decribe here) when compiling klipper then set it 0x08008000, if no Bootloader , set it 0x08000000.)
5. Start Programming
6. Remove boot jumper and power-off then power on the board.

5.3.4 Upload firmware(platformio)

If you compile Marlin yourself with platformio,you can follow the instructions below to upload the firmware.

Step 1. Enter DFU mode first

• First power off the board
• Place jumper on BT0 and 3.3V pin
• Connect USB cable to the board and your computer
• Power up the board with 24v

Step 2. Click the upload button to upload firmware

6. FAQ

1.How to config Ender 12864 on klipper?
Refer to the pinout pic and klipper documents:

[display]
lcd_type: st7920
#   Set to "st7920" for st7920 displays.
cs_pin: PB12
sclk_pin: PB13
sid_pin: PB15
#   The pins connected to an st7920 type lcd. These parameters must be
#   provided.
encoder_pins: PC10,PC11
click_pin: PB12

7. Tech Support

Please submit any technical issue into our forum
