3.2 Main Board

Download

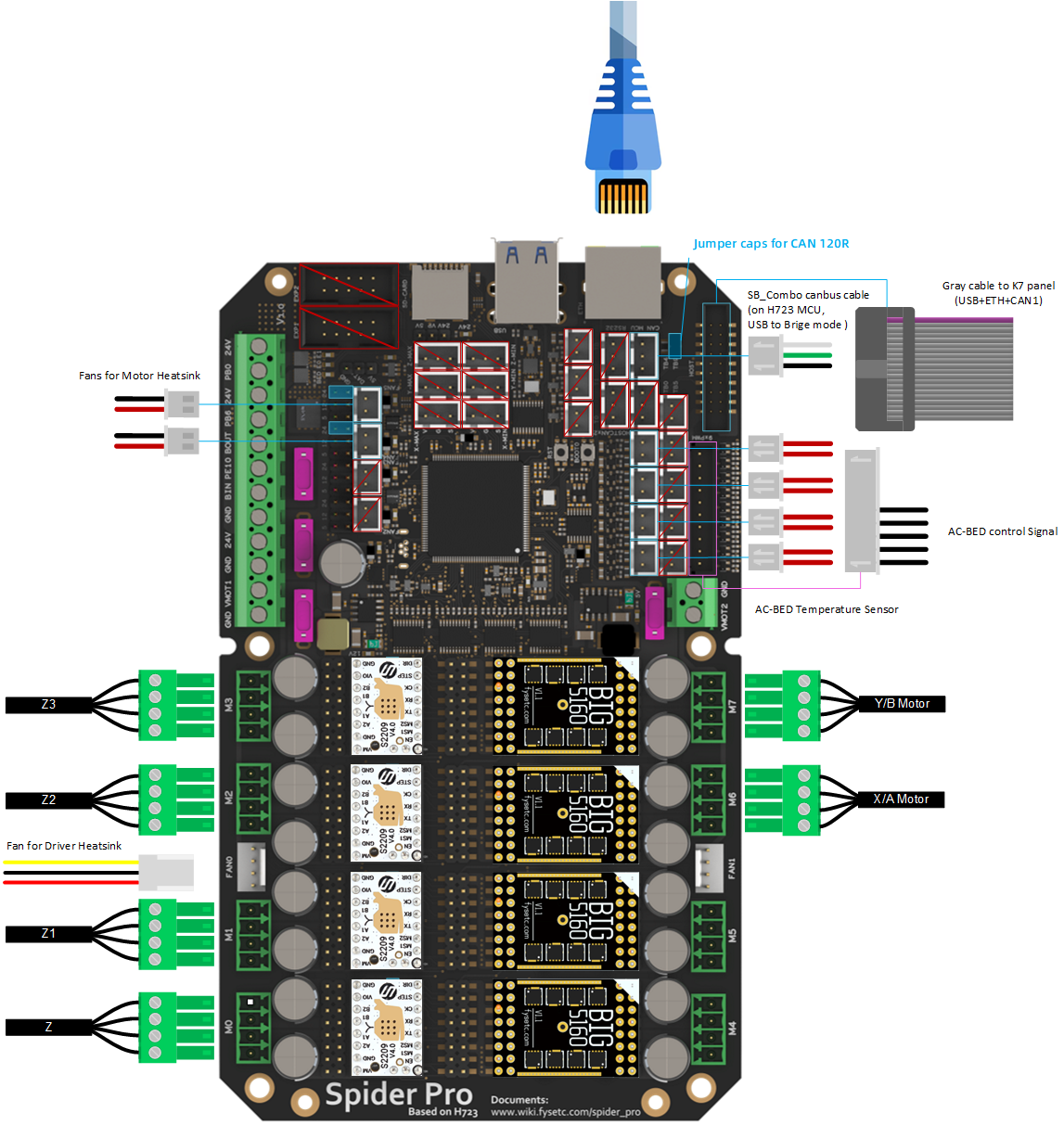

The following diagram shows the wiring connected to the motherboard.

Wiring

Please pay attention to the position and color order of the wiring. Some parts such as the fans and RGB LEDs come prewired from the factory but these may require reordering to achieve the correct pin out for the Venture XL

Note

Venture XL uses USB to CAN Bridge mode by default, the connector is marked as MCU-CAN, and identified as can2 in the system. and the 120R jumper cap must be installed on the spider pro.

K7_Panel also provides two CANBSU interfaces based on RK3568, one is located on the K7_Panel board, and the other is connected to Spider_Pro using a gray cable, marked as HOST_CAN, and identified as can1 in the system.
