Product Introduction
I upgraded based on the design of “HLS - Hackman Led System for Sparkx i7” and simplified the installation and wiring.
Link：https://www.crealitycloud.com/model-detail/hackman-led-system-sparkx-i7?profileId=6a018bdd50932b397544644d&ts=1782201795026
Compatible Printers：
Sparkx_i7 etc .
Assembly Steps
You can watch the assembly video.
视频教程链接
You can also scan the QR code to view.
Usage Steps
Step 1

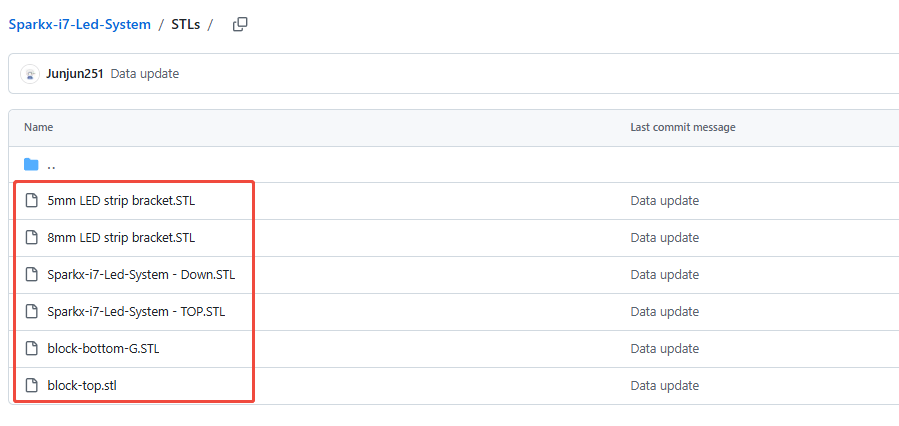

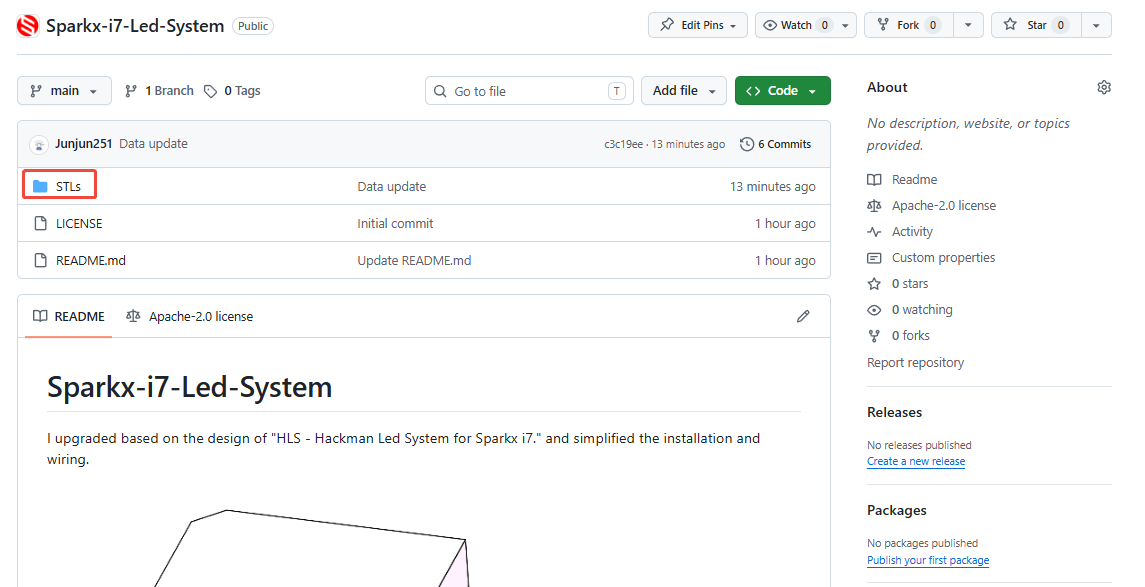

You need to download the STL file first for printing.
Step 2

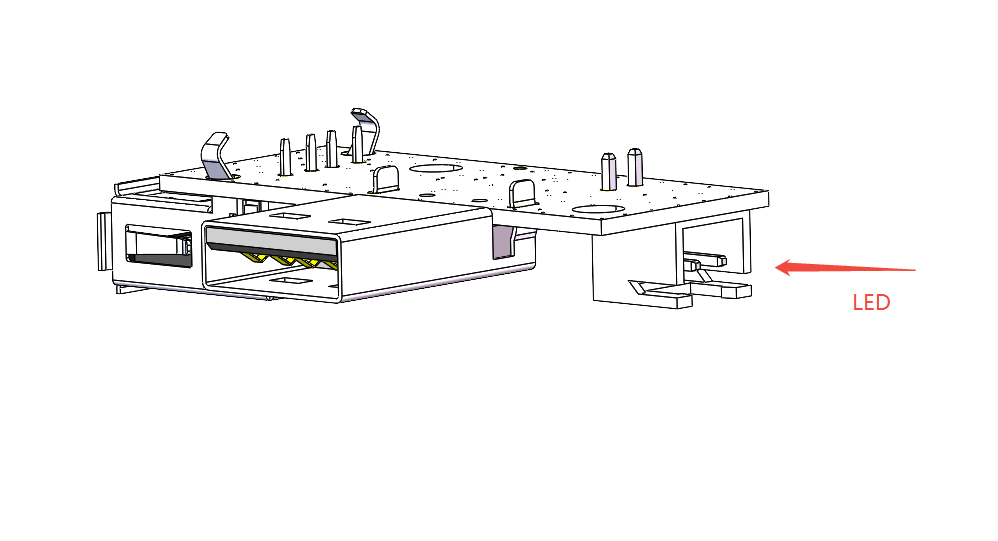

First, plug the terminal of the strip light's connecting wire into the control board.
Step 3

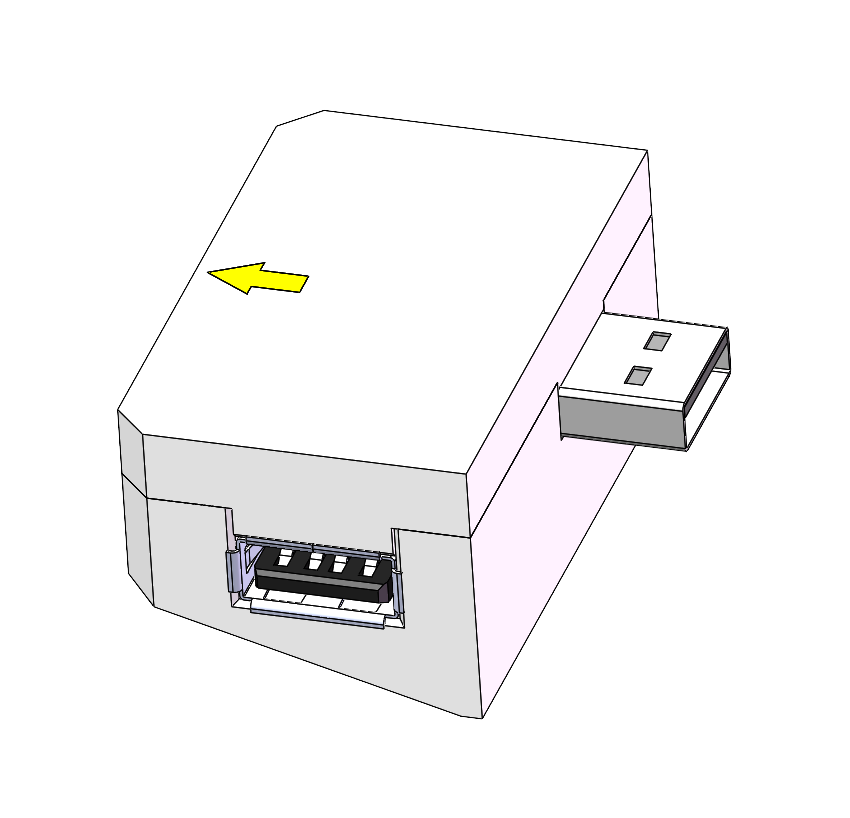

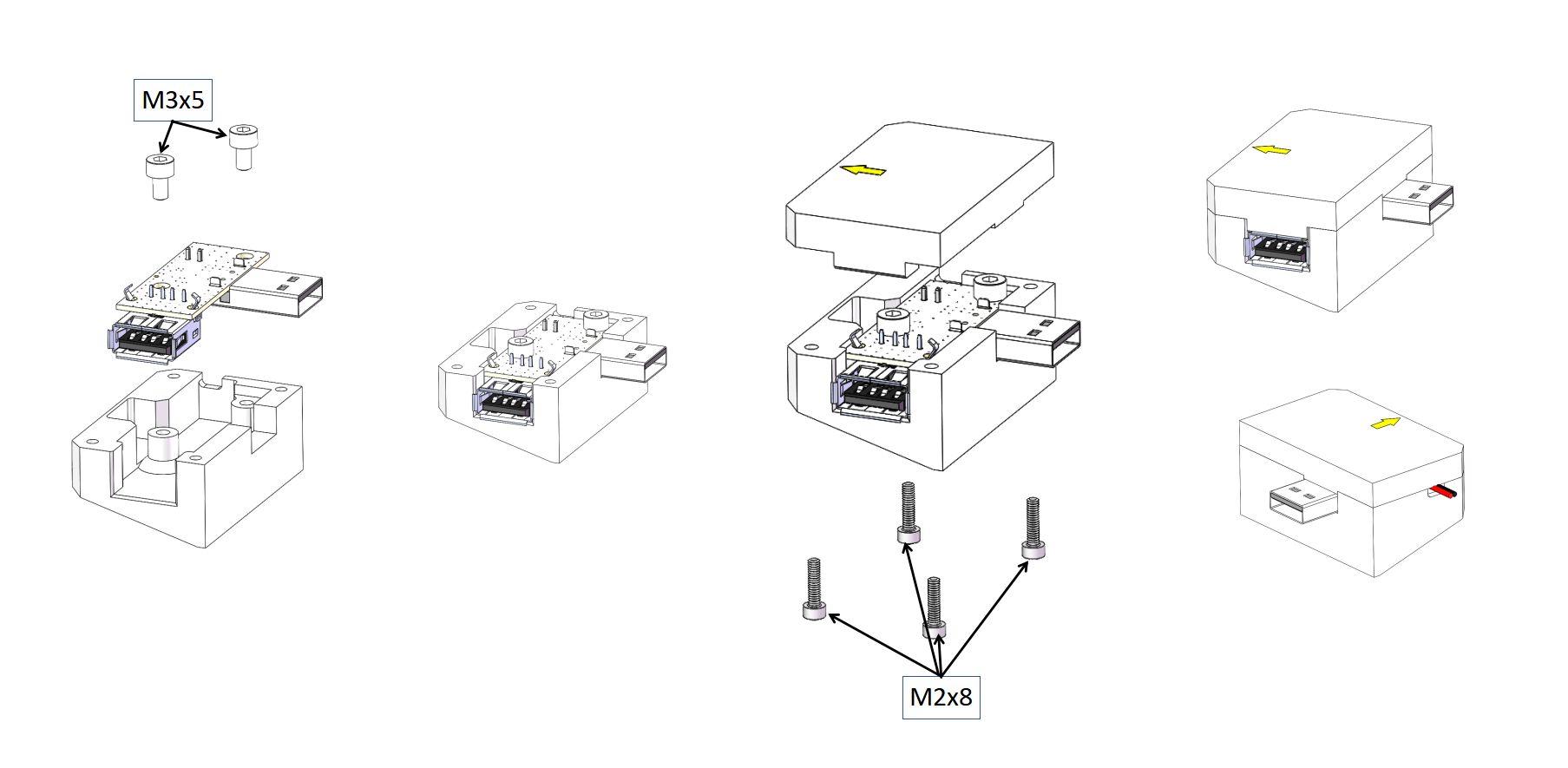

Assemble according to the diagram，Install the control board onto the shell printed in the first step.
Step 4

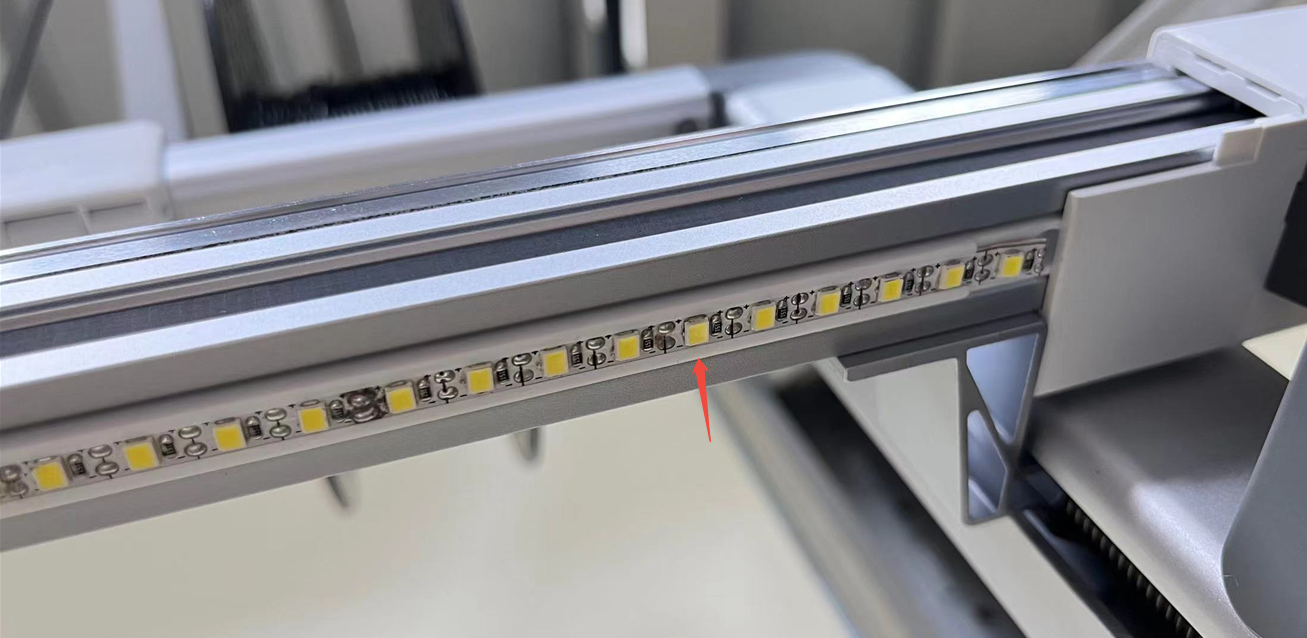

Install the printed part “8mm/5mm LED strip bracket.STL” into the slot below the X-axis and secure it using M3x6 screws.
Step 5

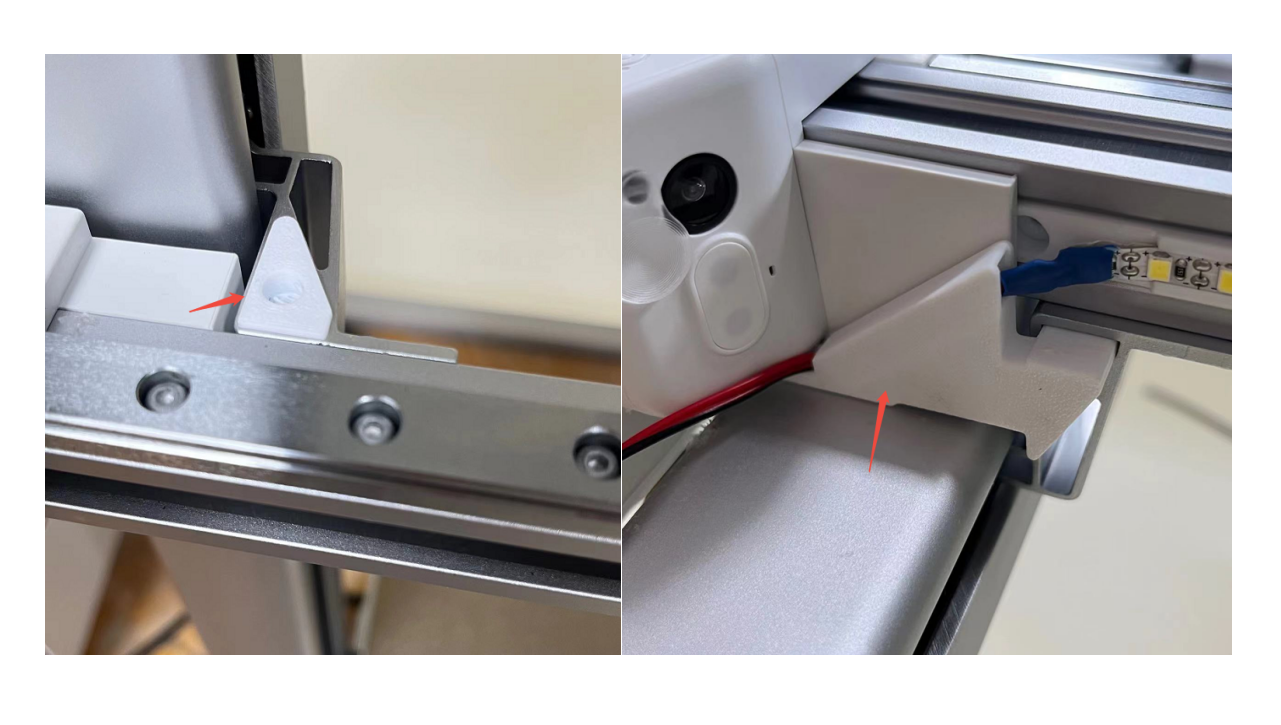

Install the printout “block-bottom-G.STL、block-top.stl” into the metal slot on the left side of the X-axis and M3x12mm secure it with screws.
Step 6

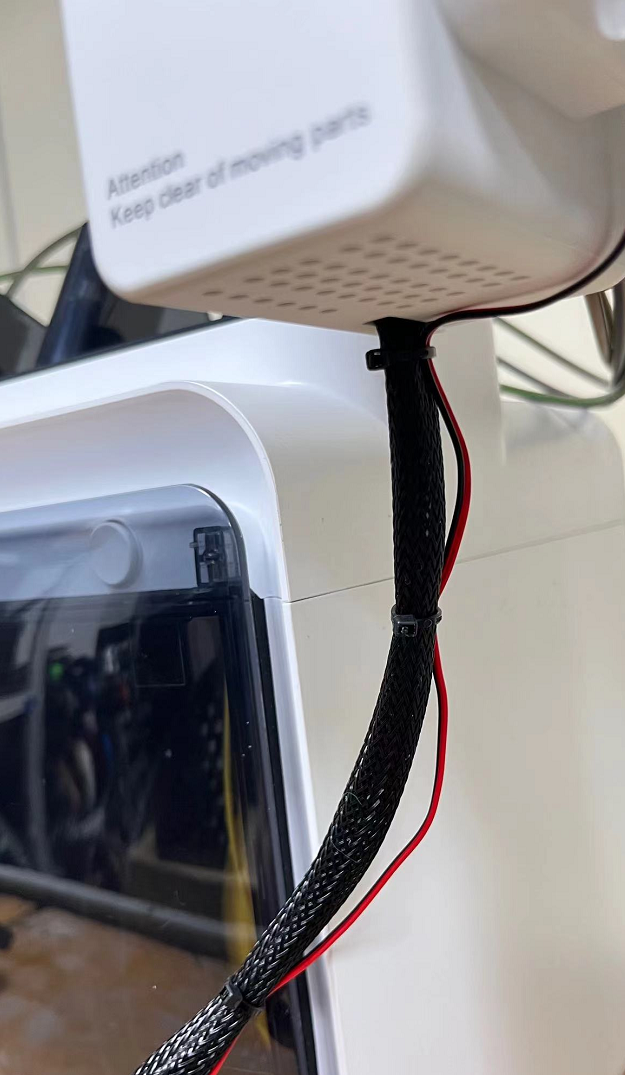

Secure the power cord with a cable tie.
Step 7

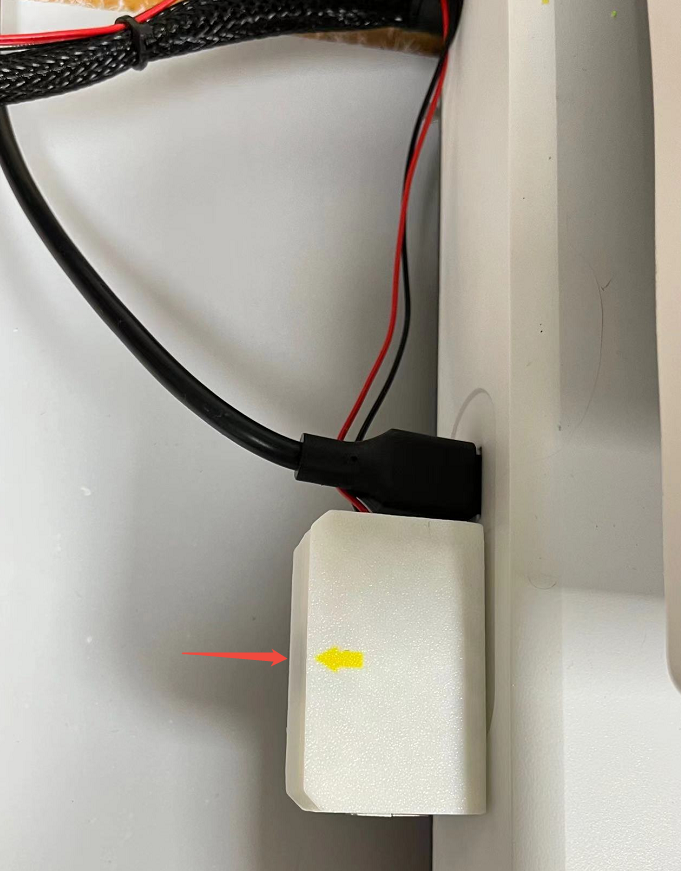

Plug the power module into the USB port of the machine.
After installation, touch the left side to switch the LED on or off.
Attention
Refer to the assembly tutorial to avoid installation errors.
FAQ
- Q: How to install to my 3D printer?
A: You can watch the assembly video. - Q：Does the installation require additional printed fixtures?
A：Yes needed，Please click STL. to download.Or scan the QR code to download.
Attachments
- STL.
