1. Introduction

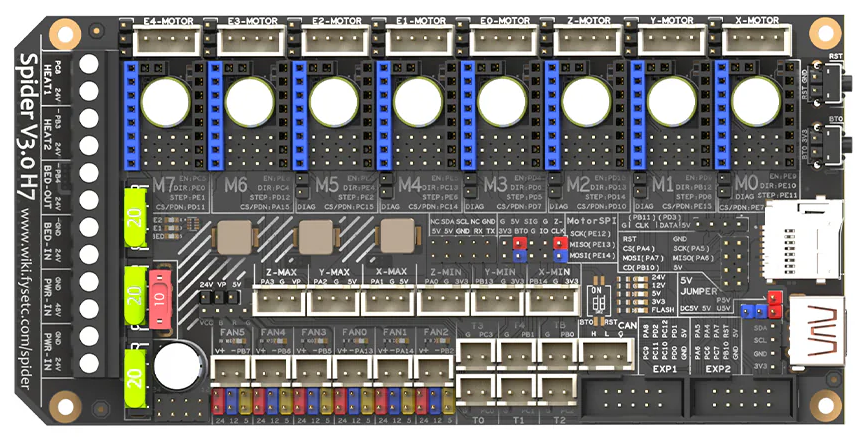

Spider V3.0 H7

The Fysetc Spider V3.0 H7 is a high-end 3D printer controller board aimed primarily at custom printers such as Voron builds, CoreXY machines, and heavily modified printers running Klipper. It's essentially an upgraded version of the earlier Spider V3.0 F446, with a much faster MCU and improved high-voltage motor support.

Features vs F446 version

STM32H723VGT6 @ 550Mhz
Independent Motor Power input, 60V Peak (removed one MOSFET ouptut)
Voltage Selector on every Driver
120uF/63V Capacitor for Motor Driver
DotStar RGB Support

2. Features

Feature	Spider V3.0 H7
MCU	STM32H723VGT6
CPU Speed	550 MHz
Stepper Driver Slots	8
Firmware Support	Klipper, Marlin, RepRap Firmware
USB	USB-C
CAN Bus	Built-in transceiver
Motor Voltage	Selectable 24V / 48V
Peak Motor Input	Up to 60V
RGB Support	DotStar LEDs
Form Factor	Same general layout as earlier Spider boards

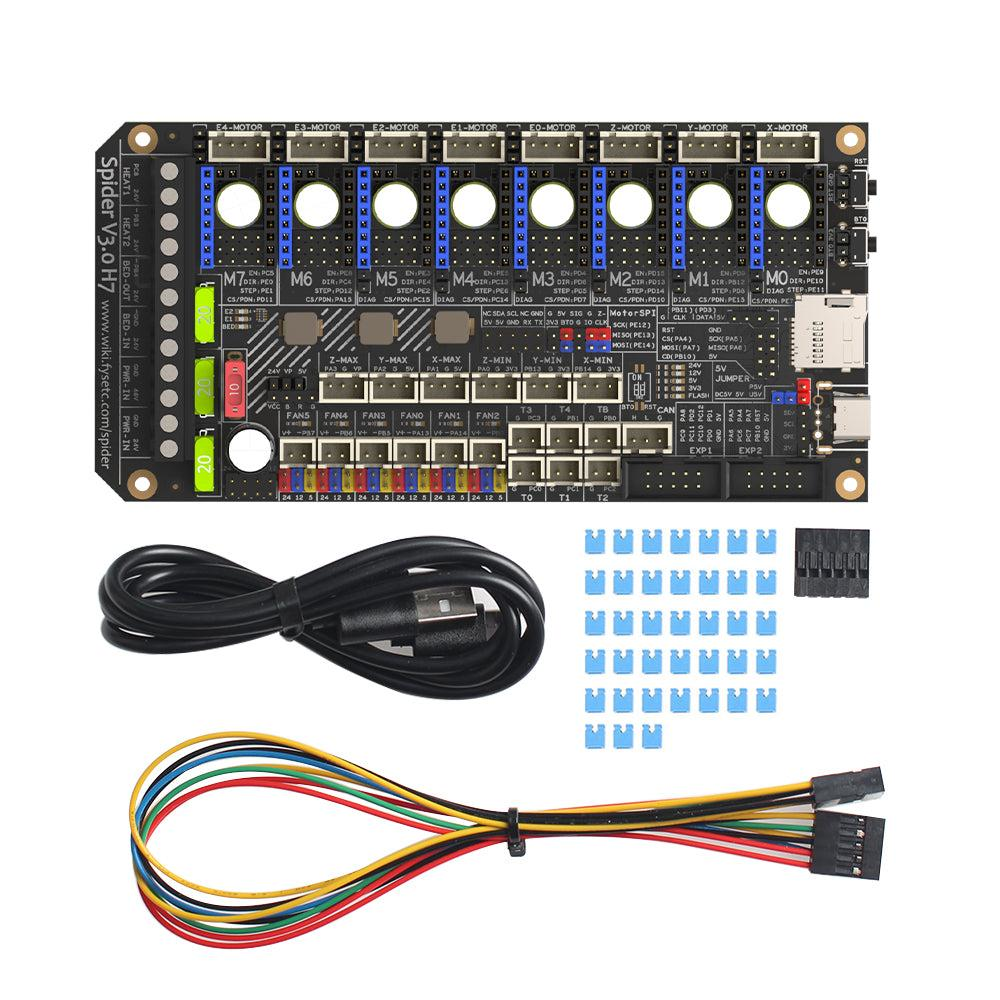

2.1 Whats Included

FYSETC Spider V3 H7 Board
2 x 5 Double DuPont Cable
30 x Jumper Caps
USB Type C - USB A Cable

3. Hardware Guide

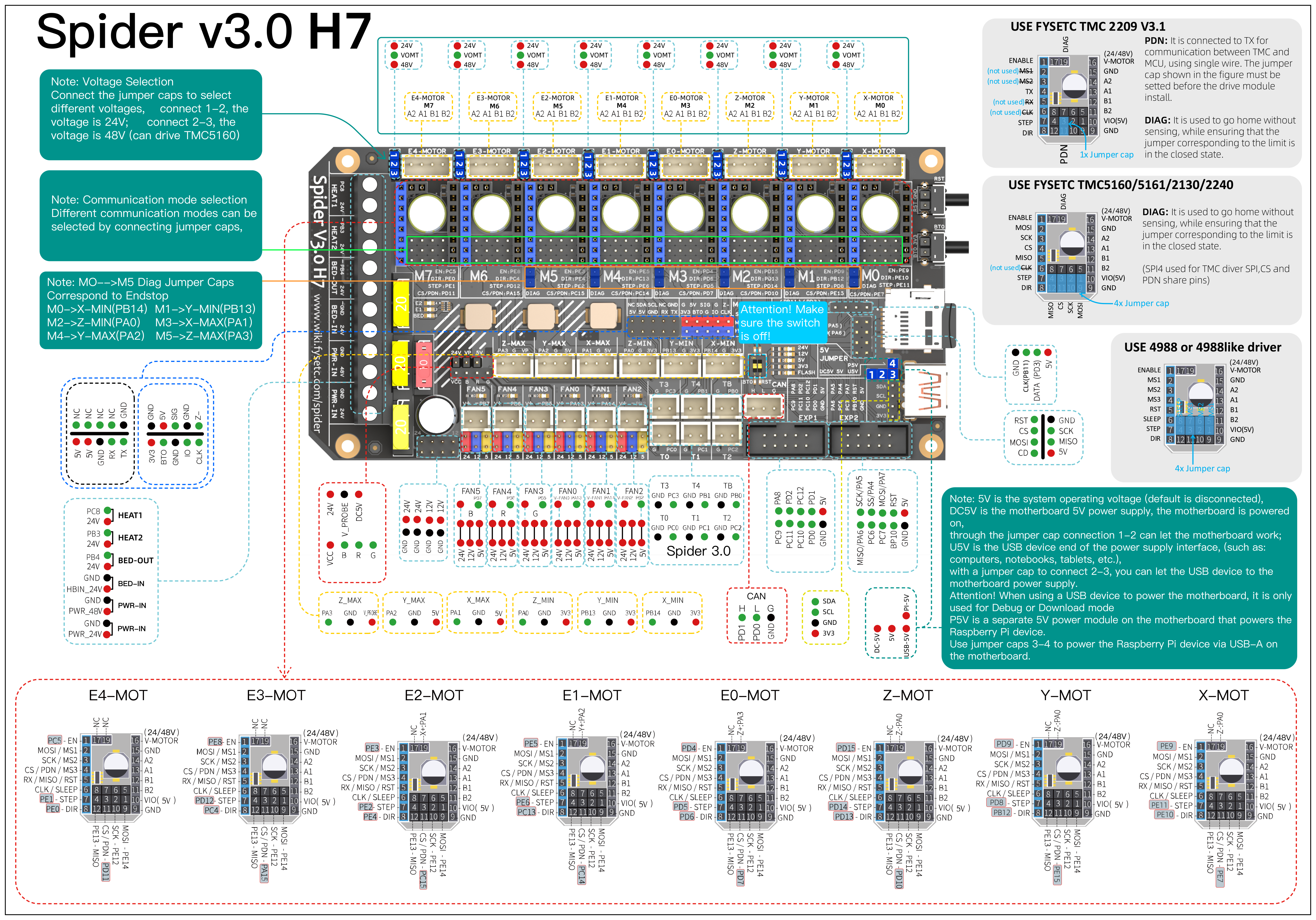

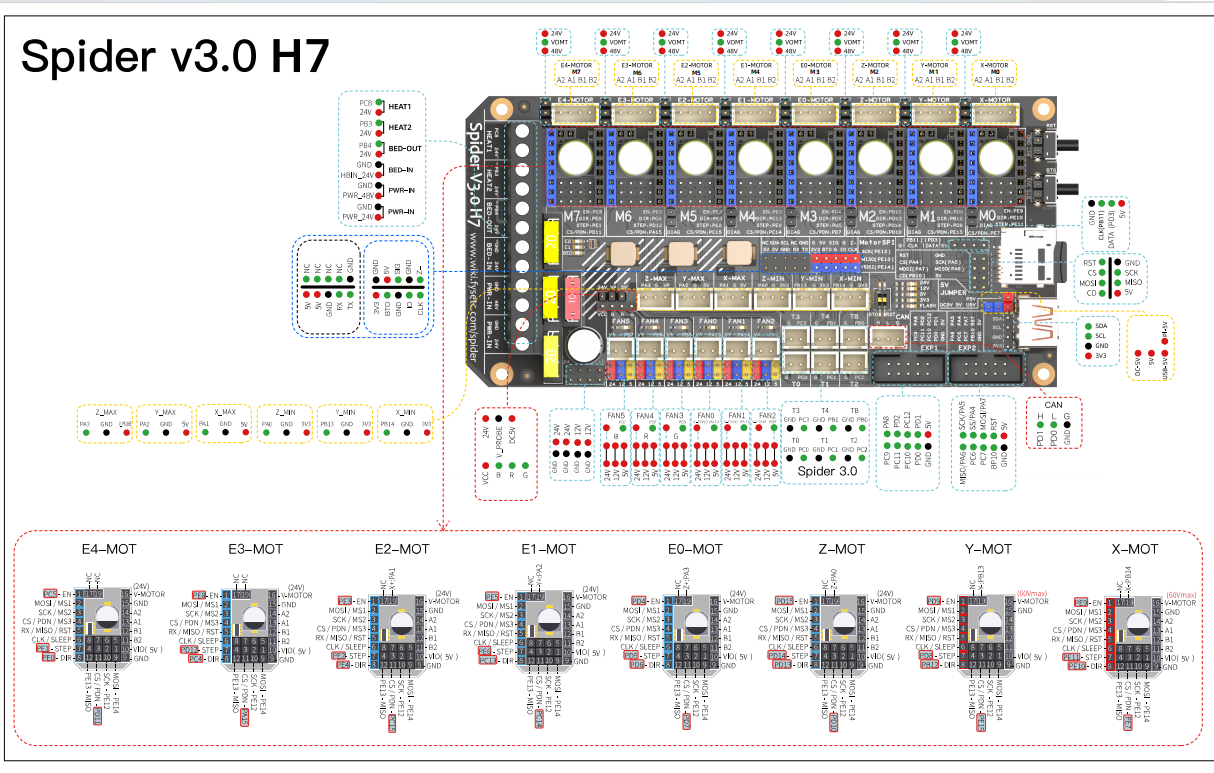

3.1 GPIO and Pin Assignments

Image created by hdragoon - https://github.com/hdragoon

3.2 Pin Definition

3.2.1 Spider v3.x H7

Features	Spider Pin	STM32 Pin	Pin No.	Comment
X-MOTOR(1)	X-Step	PE11	42
	X-DIR	PE10	41
	X-EN	PE9	40
	X-CS/PDN	PE7	38
Y-MOTOR(2)	Y-Step	PD8	55
	Y-DIR	PB12	51
	Y-EN	PD9	56
	Y-CS/PDN	PE15	46
Z-MOTOR(3)	Z-Step	PD14	61
	Z-DIR	PD13	60
	Z-EN	PD15	62
	Z-CS/PDN	PD10	57
E0-MOTOR(4)	E0-Step	PD5	86
	E0-DIR	PD6	87
	E0-EN	PD4	85
	E0-CS/PDN	PD7	88
E1-MOTOR(5)	E1-Step	PE6	5
	E1-DIR	PC13	7
	E1-EN	PE5	4
	E1-CS/PDN	PC14	8
E2-MOTOR(6)	E2-Step	PE2	1
	E2-DIR	PE4	3
	E2-EN	PE3	2
	E2-CS/PDN	PC15	9
E3-MOTOR(7)	E3-Step	PD12	39
	E3-DIR	PC4	33
	E3-EN	PE8	59
	E3-CS/PDN	PA15	77
E4-MOTOR(8)	E4-Step	PE1	34
	E4-DIR	PE0	97
	E4-EN	PC5	98
	E4-CS/PDN	PD11	58
TMC Driver SPI (SPI4)	MOSI	PE14	45
	MISO	PE13	44
	SCK	PE12	43
End-stops	X-MIN	PB14	53	Share with X-DIAG
	X-MAX	PA1	24	Share with E0-DIAG
	Y-MIN	PB13	52	Share with Y-DIAG
	Y-MAX	PA2	25	Share with E1-DIAG
	Z-MIN	PA0	23	Share with Z-DIAG
	Z-MAX(Probe)	PA3	26	Share with E2-DIAG
FAN/RGB	FAN0	PA13	72
	FAN1	PA14	76
	FAN2	PB2/BOOT1	37
	LED-R	PB6	92	Can be used for fan3
	LED-G	PB5	91	Can be used for fan4
	LED-B	PB7	93	Can be used for fan5
	5V-LED(WS2812)	PD3	84	Share with flash indicator(Bootloader)
Heating	E0-Heater	PB15	54
	E1-Heater	PC8	65
	E2-Heater	PB3	89
	Heated-Bed	PB4	90
Temperature	TE0（THERM0）	PC0	15	A 4.7kOhm 0.1% temperature sensor pull up resistor is used,PT1000 can be connected directly. For PT100, an amplifier board must be used.
	TE1（THERM1）	PC1	16	A 4.7kOhm 0.1% temperature sensor pull up resistor is used,PT1000 can be connected directly. For PT100, an amplifier board must be used.
	TE2（THERM2）	PC2	17	A 4.7kOhm 0.1% temperature sensor pull up resistor is used,PT1000 can be connected directly. For PT100, an amplifier board must be used.
	TE3（THERM3）	PC3	18	A 4.7kOhm 0.1% temperature sensor pull up resistor is used,PT1000 can be connected directly. For PT100, an amplifier board must be used.
	TE4（THERM4）	PB1	36	A 4.7kOhm 0.1% temperature sensor pull up resistor is used,PT1000 can be connected directly. For PT100, an amplifier board must be used.
	TB（THERM3）	PB0	35	A 4.7kOhm 0.1% temperature sensor pull up resistor is used,PT1000 can be connected directly. For PT100, an amplifier board must be used.
EXP2	LCD_D7	PD1/CAN-TX1	82	Share with CAN-TX1
	LCD_D6	PD0/CAN-RX1	81	Share with CAN-RX1
	LCD_D5	PC12/MOSI3/TX5/SDA2	80
	LCD_D4	PC10/SCK3/TX3/4	78
	LCD_EN	PC11/MISO3/RX3/4	79
	LCD_RS	PD2/RX5	83
	ENC_C	PA8/SCL3	67
	BEEP	PC9/SDA3	66
EXP1	RESET	NRST	14
	ENC_A	PC6/TX6	63
	ENC_B	PC7/RX6	64
	SD-DET	PB10/SCL2	47
	SD-MISO	PA6/MISO1	31
	SD-MOSI	PA7/MOSI1	32
	SCK	PA5/SCK1	30
	CS	PA4/CS1	29
EEPROM(4K) I2C Pin-Out	SCL	PB8/SCL1	95	Connect to 24LC32(4K EEPROM)
EEPROM(4K) I2C Pin-Out	SDA	PB9/SDA1	96	Connect to 24LC32(4K EEPROM)
Pi_PWR/UART	TX	PA9/TX1	68
Pi_PWR/UART	RX	PA10/RX1	69
SWD Debug		PA13/SWDIO	72	only used for debugging now and can be used for other purposes.
		PA14/SWCLK	76	only used for debugging now and can be used for other purposes.

3.3 Wiring

3.3.1 CAN

There is a permanent 120 ohm termination resistor soldered to the board, no need to add a jumper to enable it and also no ability to disable it.

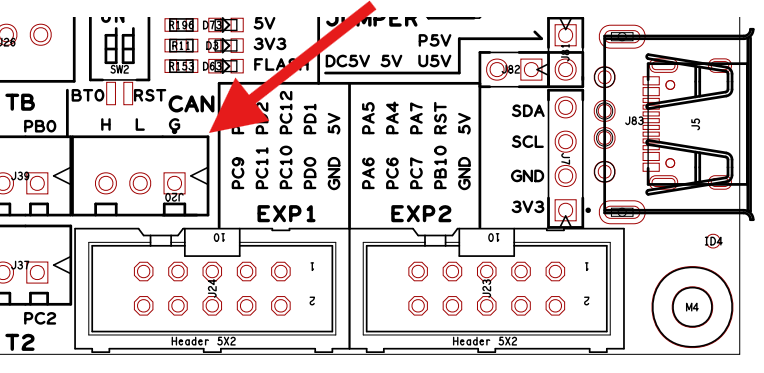

The CAN port on the Spider V3.0 H7 is a 3 pin JST-XH header located here:

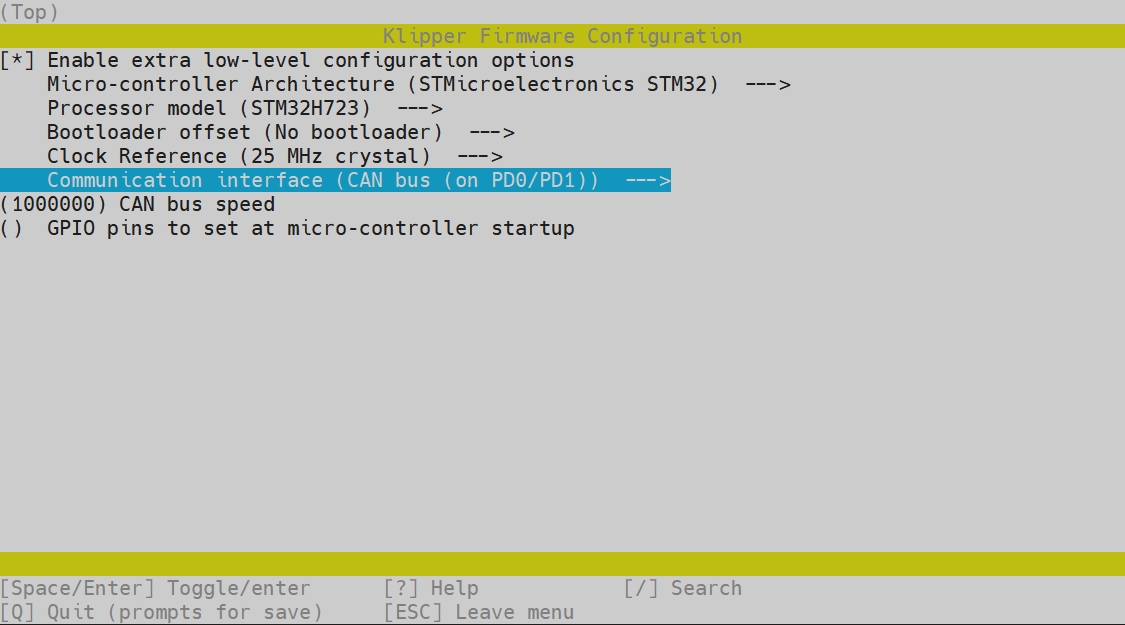

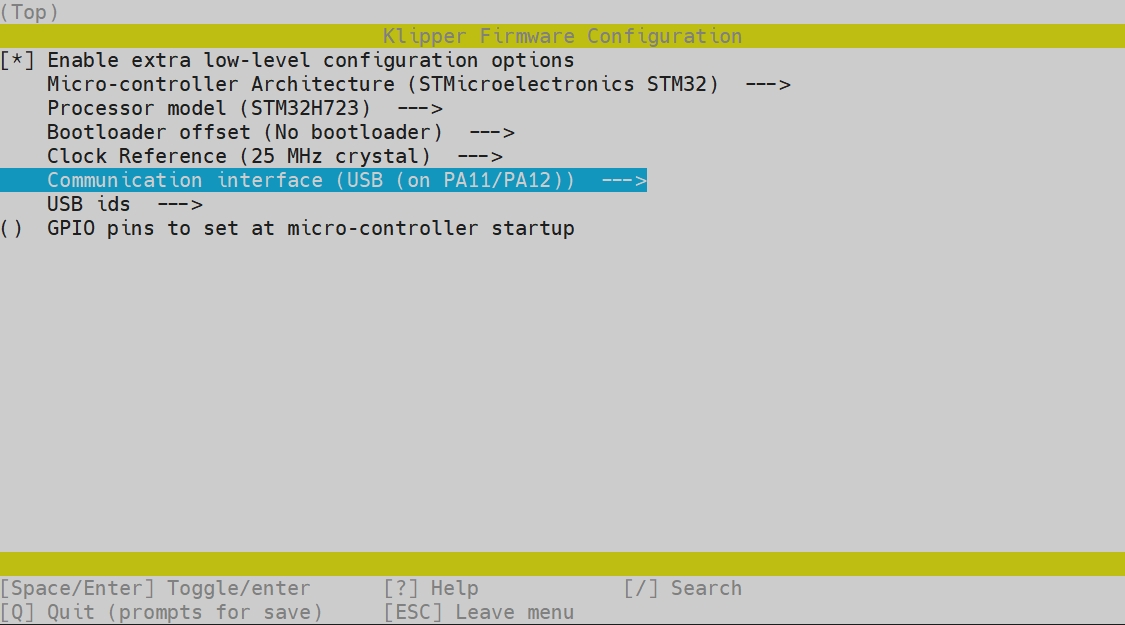

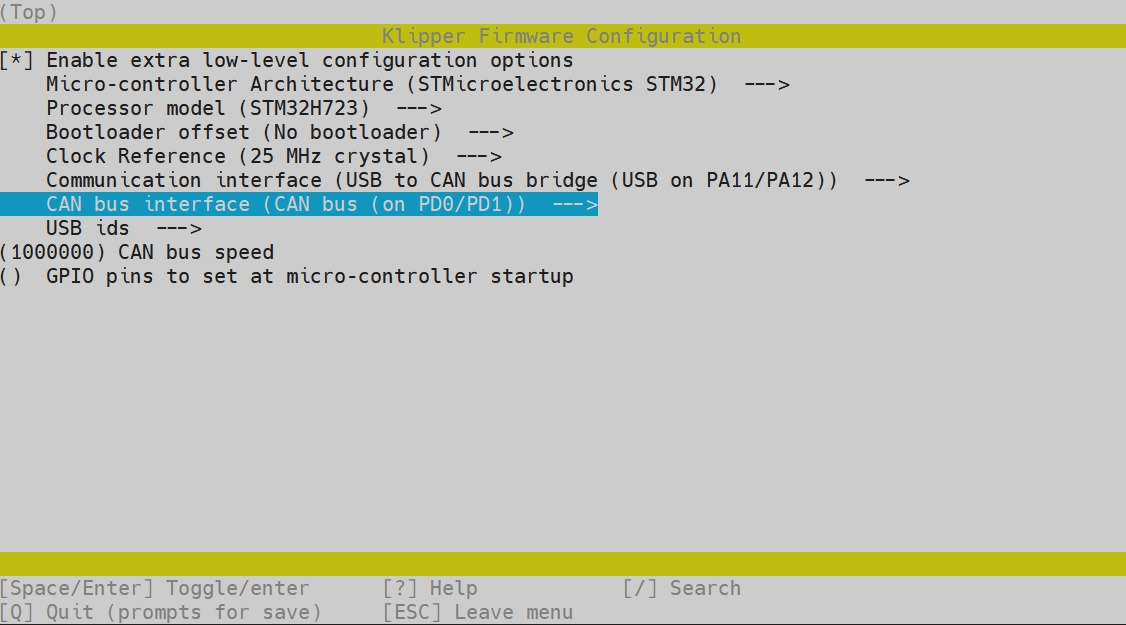

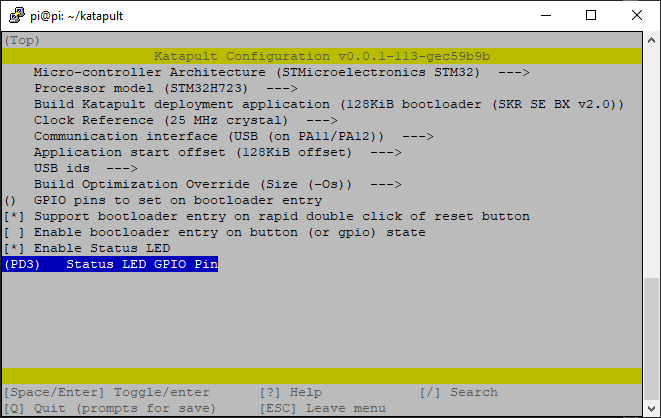

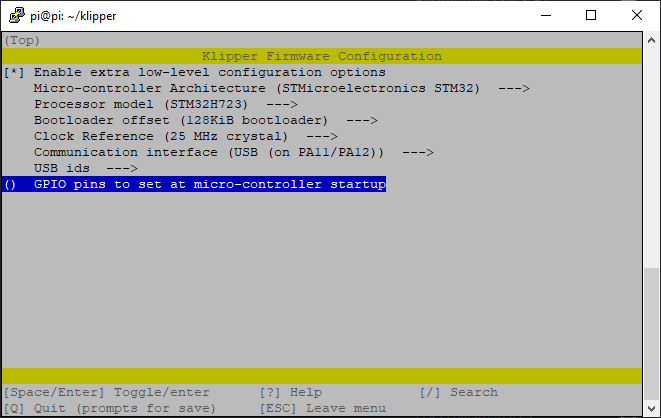

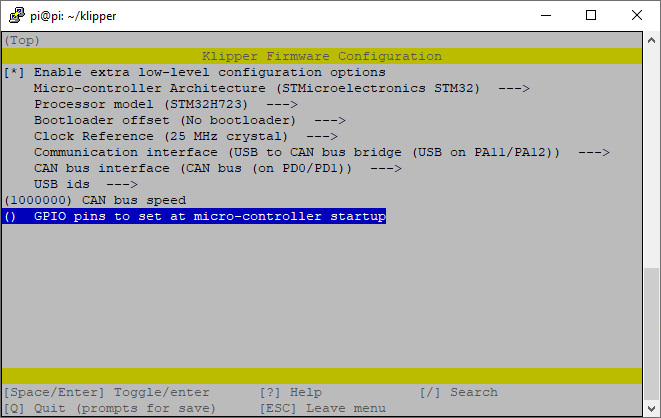

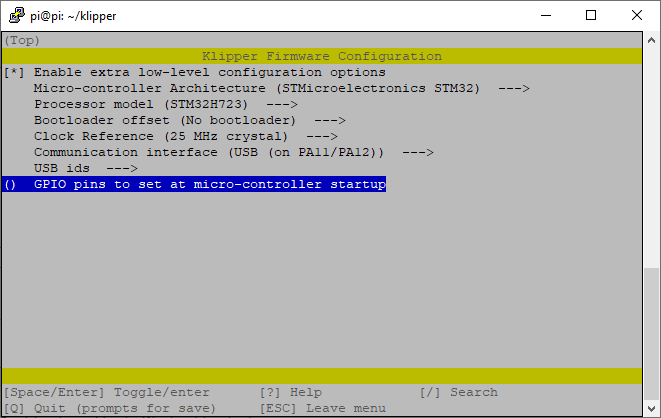

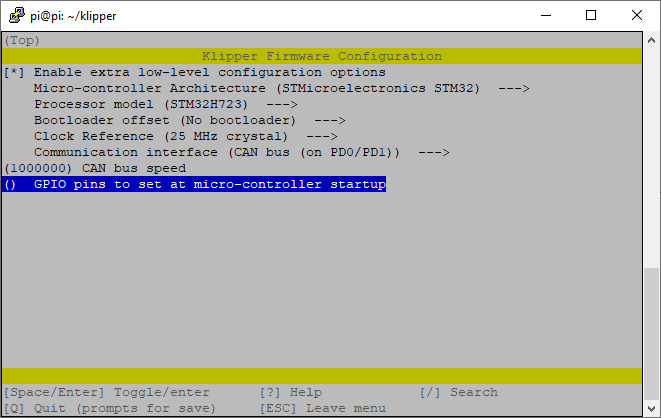

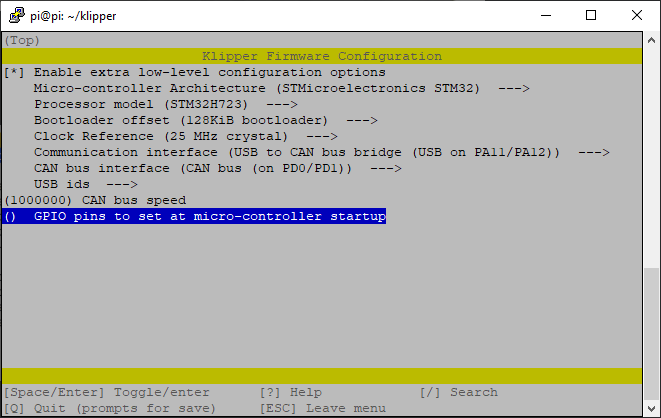

4. Firmware Guide

DFU mode

To put the Spider V3.0 H7 into DFU mode, hold the BT0 button and while still holding press and release the RST button. Then count to 5 and release the BT0 button.
