Links to information about each Core/Board

Includes schematics, dimensions, example code, 3D files and more.

RK3568 img: Mega

https://mega.nz/fm/XEJgVJ6b

Cartographer:

https://docs.cartographer3d.com/cartographer-probe/installation-and-setup

Spider Pro:

https://github.com/FYSETC/Spider_Pro

SB Combo:

https://wiki.fysetc.com/SB_Combo_V2/

https://github.com/FYSETC/SB_Combo_V2

Note：

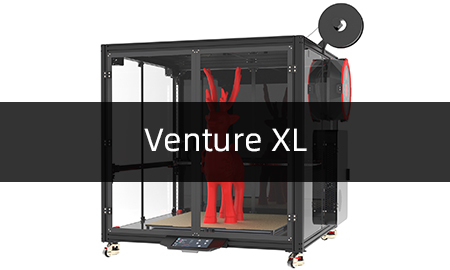

By default, the three motherboard working modes of Venture XL are as follows

Spider_Pro:

USB to CANBUS Bridge Mode, No bootloader, with 120R resistor (the jumper cap next to MCU_CAN is installed by default)
It provides CAN2, which is used to connect SB_Combo and Cartographer, hardware link reference here:
klipper configuration is as follows:

SB_Combo:

CANBUS, 1000000, No bootloader, with 120R resistor (120R jumper pad is enabled by default)
klipper configuration is as follows:

SB_Combo_V2_menuconfig_nobootloader_CAN

Cartographer:

CANBUS, 1000000, without 120R resistor
