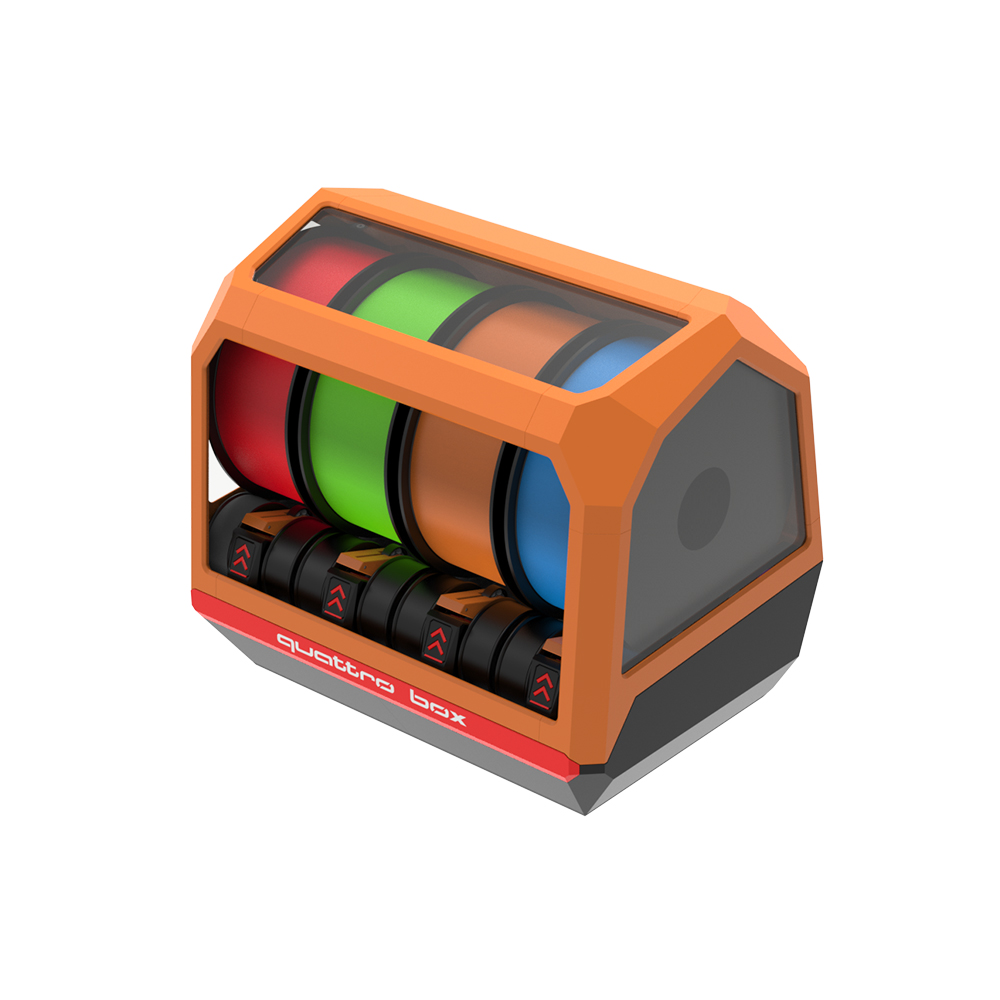

FYSETC-QuattroBox

Download

1. Thanks too

This is the project database created by FYSETC for the QuattroBox suite, making it convenient for you to search for information. Thanks to the excellent work of the QuattroBox team, they are always able to design outstanding machines.
Official Github：https://github.com/Batalhoti/QuattroBox/tree/main

2. Modifications

We make some small changes based on the QuattroBox official material.

X5 motherboard+X5 adapter board（Motherboard information：https://wiki.fysetc.com/docs/CHAMELEON-X5)
Equipped with Binky encoder, it can achieve precise filament positioning
Mechanical limit switch, safe and reliable
NEMA 17 stepper motor

3. Printed Parts

https://github.com/FYSETC/FYSETC-QuattroBox/tree/main

4. FAQ

Q: How to install to my 3D printer? A: You can read the assembly manual. We have made some changes，Replace pages 177-186 of the original installation manual.
Q：Does the installation require additional printed fixtures? A：Not needed
